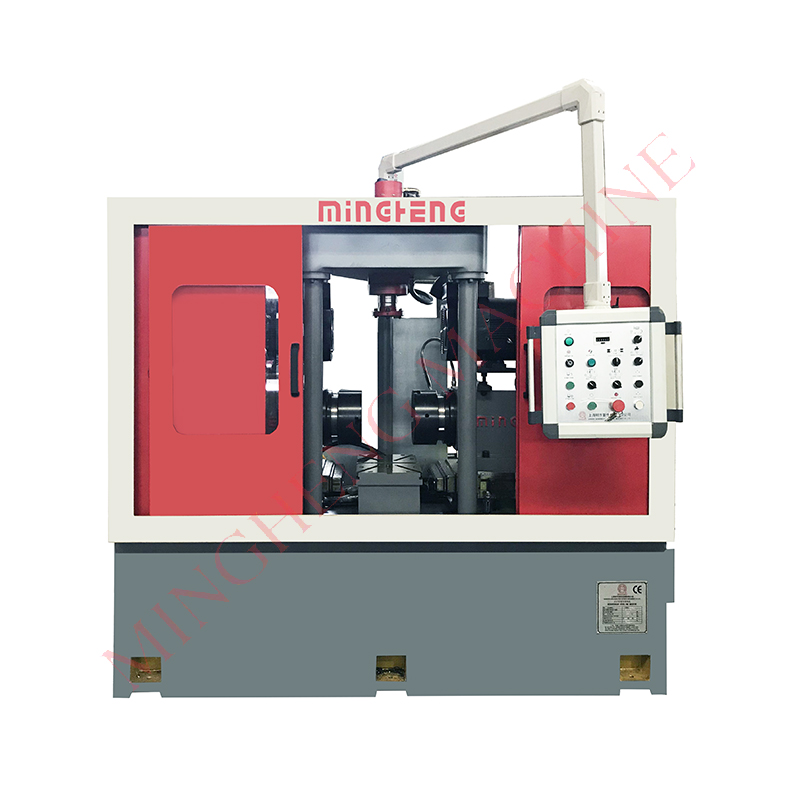

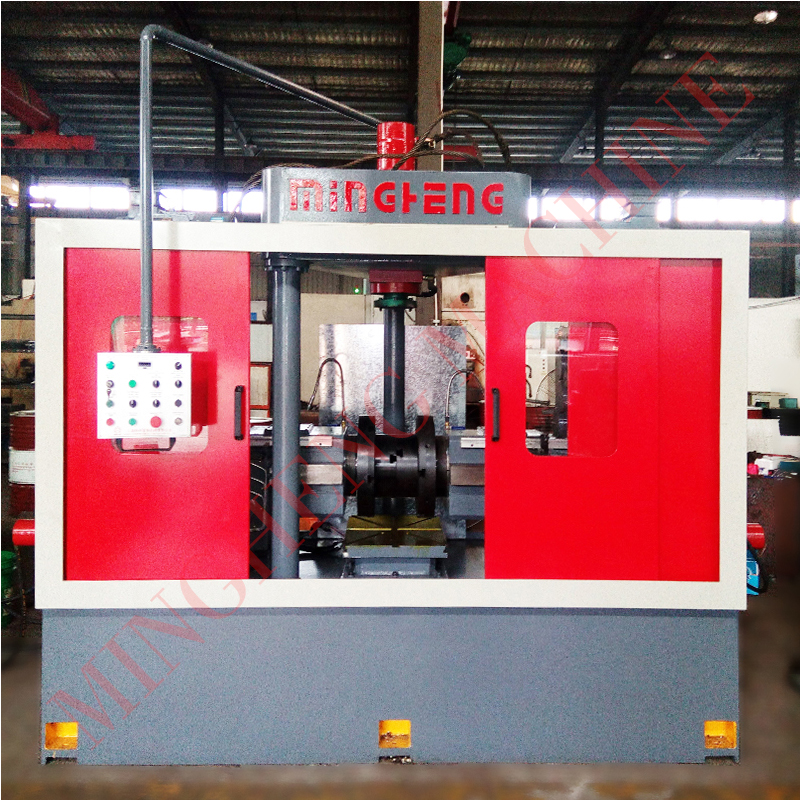

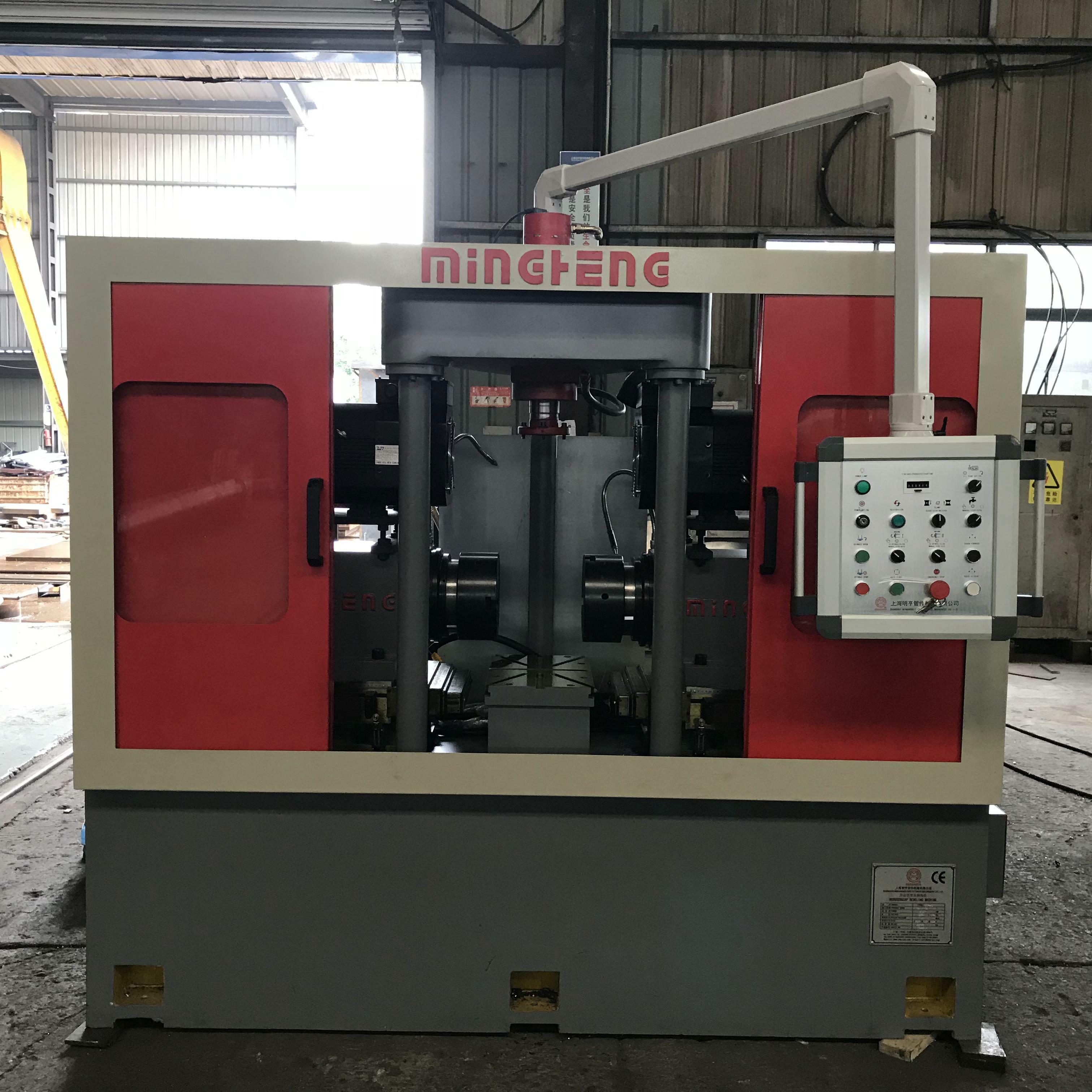

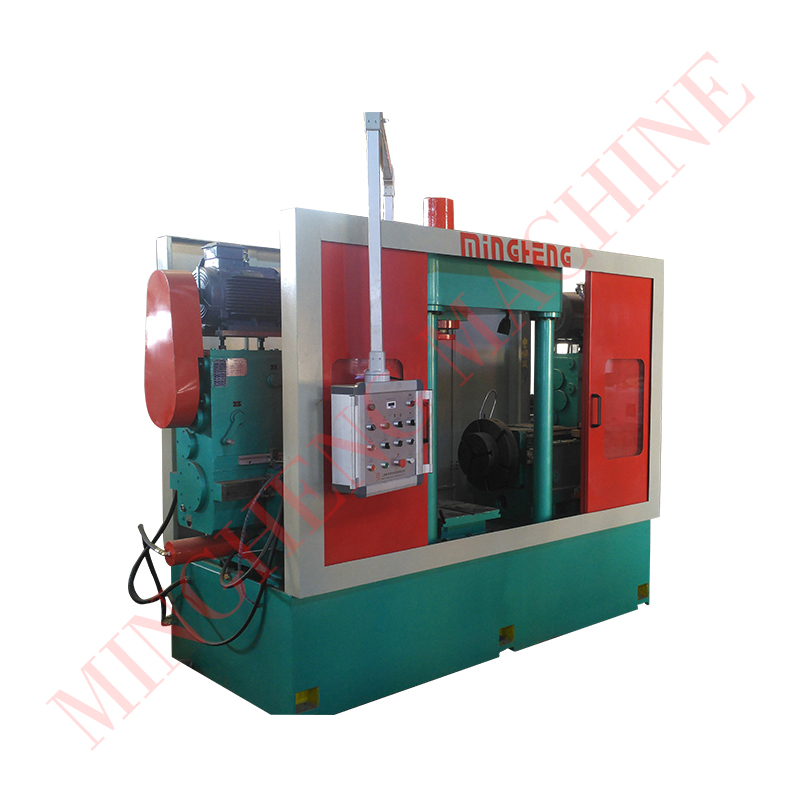

  • YTPDJ Series Reducer Beveling Machine has the features of unique design, compact structure, good appearance and convenient to operate.



    Main features are as follows:

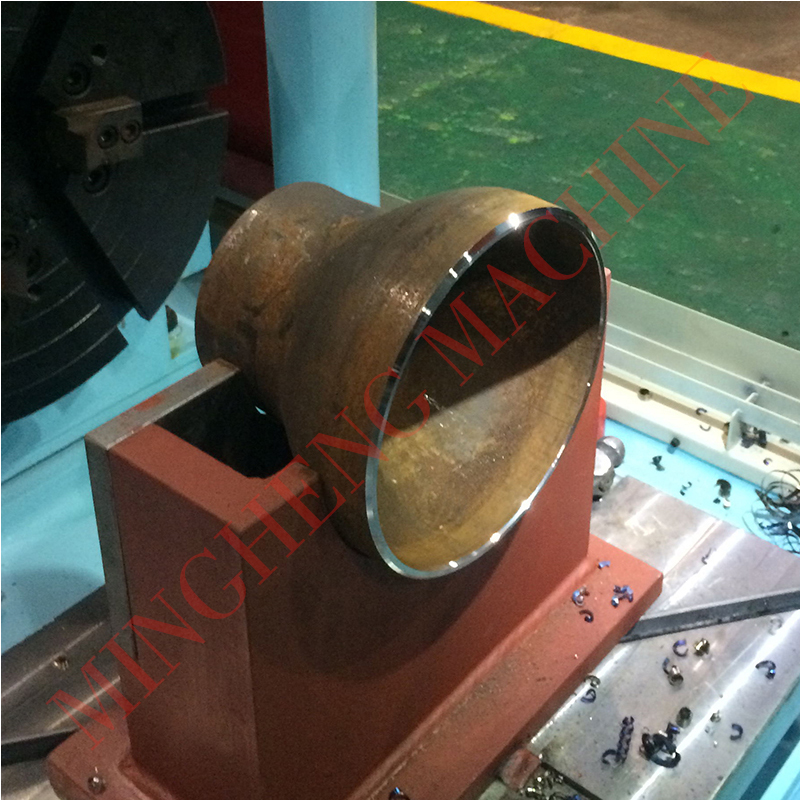

    1. It is ideal equipment for chamfering both concentric and eccentric reducers of size 1/2” to 48’’ at both ends simultaneously.

        The materials of the reducers can be carbon steel, stainless steel and alloy steel.

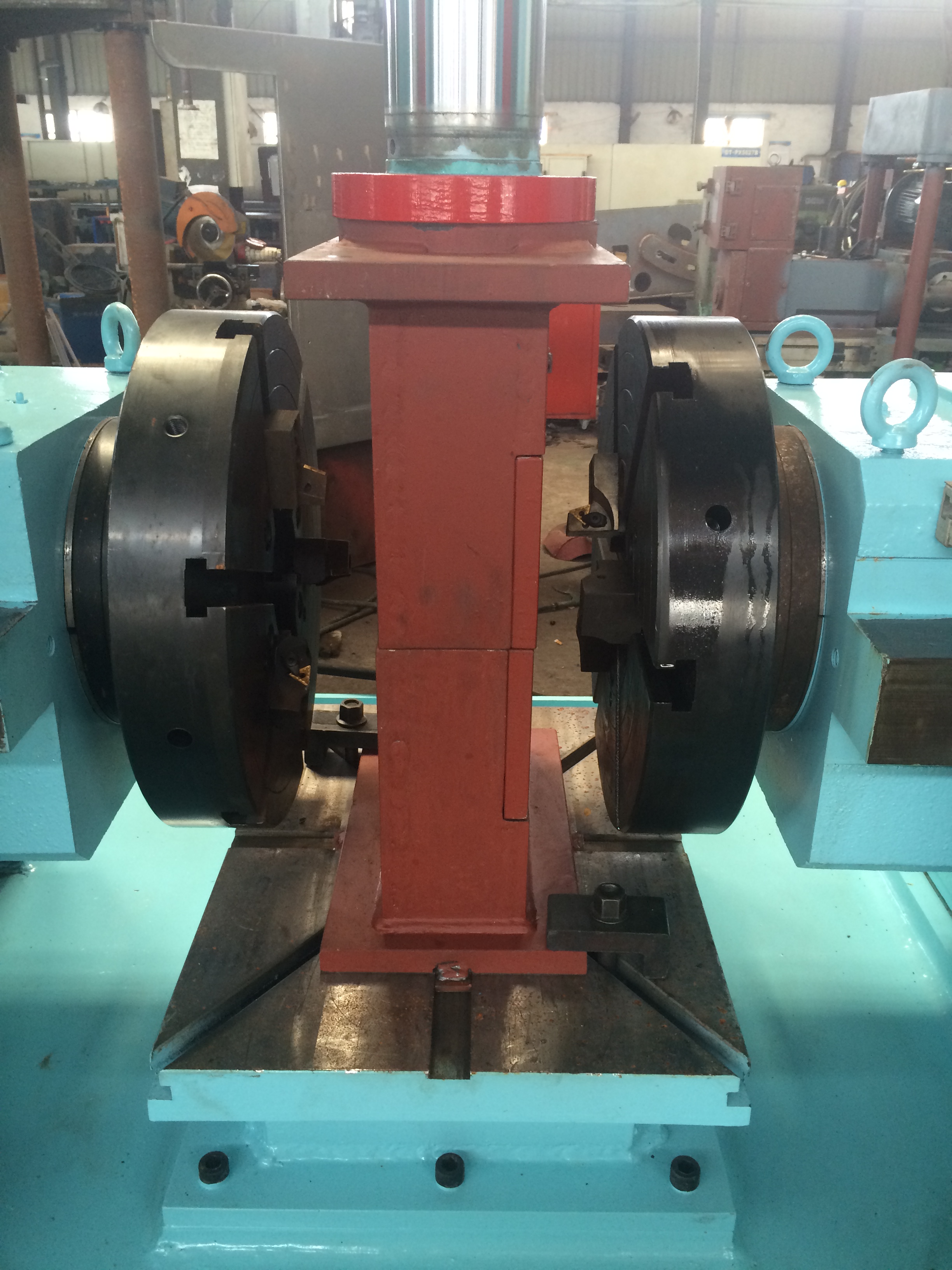

    2. The machines have high precise-locating device for concentric and eccentric reducer jigs, excellent hydraulic clamping device and individual hydraulic power unit.

         The application of sliding tables with functions of fast feeding, inching and fast retreat enables the safety during working.

    3. There are three tips for each power head,they serve for different range of work and can work at the same time to ensure the effective cutting and fully satisfy

        stable requirements of the guide track under the status of strong cutting.

    4. The application of floating cutter for large size helps to solve the difficulties of rough roundness of hydro-forming elbows,

        which develop chamfering precision and decrease reject ratio.

    5. The cutting speed is hydraulic stepless speed control and the processing stroke is also adjustable in according to different sizes and thicknesses of concentric

         and eccentric reducers, the products processed by the machine are strictly complying with relevant pipe fittings beveling standards.

    6. There’re three kinds of operation methods: Manual, Semi-auto and Automatic; easy operation system helps to save working time and develop production efficiency.

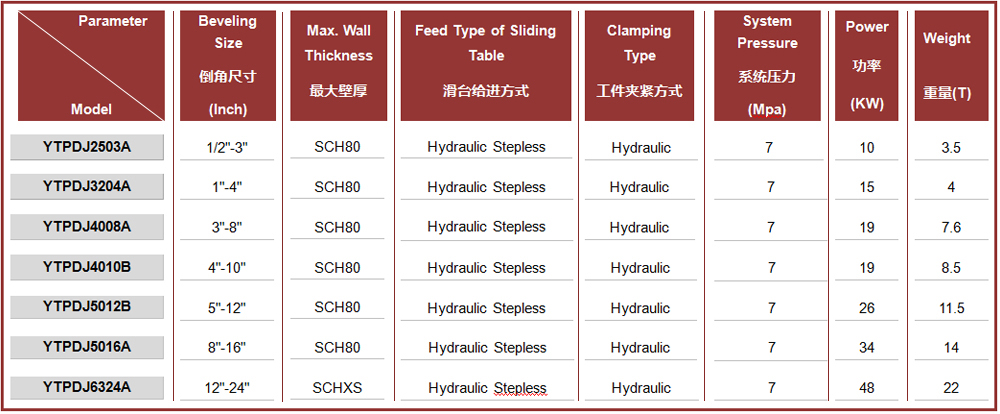

    TABLE PARAMETER :
